SAMOA Flow
Equipment for fluid management in industrial processes

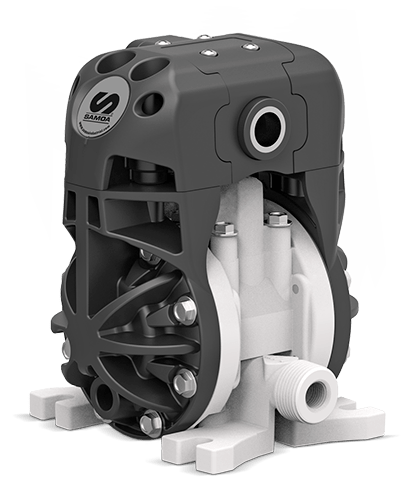

There are two distinct advantages Samoa’s diaphragm pumps have over competitive lines. The DF series uses a Pivot-Style air valve which is up to 30% more efficient when it comes to compressed air consumption.
The other innovation is the center-flow-through design. If you look at traditional diaphragm pumps they have two discs on either side of the pump. Samoa’s design routes the fluid up through the center of the pump and can cut pulsation up to 40% compared to competing brands. The ability to run these pumps without pulsation dampeners is a big advantage.
DIRECTFLO® Technology

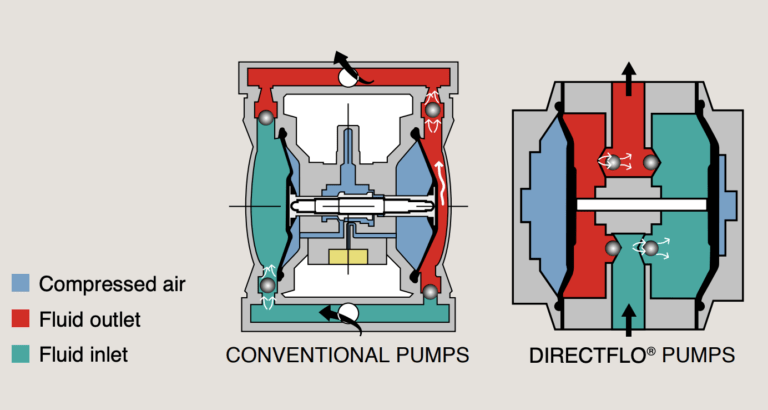

Directflo® pumps are based in an “inside-out” technology: the fluid is pumped through the center of the pump and the compressed air acts on outside face of the diaphragms.
- Extremely fast change over
- Diaphragms do not fully flex which greatly extends life
Samoa vs. Competitors
Pivot Air Valve
- Runs with dry, dirty or damp air
- Lube-free operation
- Long life pivot-pads
Success Story
SAMOA in a flexography printing machine for ink
SAMOA has X 1” DF100 Diaphragm Pumps installed in a factory of labels and packaging. Each of that pumps is installed in a different flexo printing machine. Our pump dispenses solvent base ink to a fountain that keep the printing rollers always submerged. Some reasons why the user changed to SAMOA AODD Pumps was because of the low consumption, the reduced pulsation and the ATEX certification recently required in their country.
REQUEST A QUOTE
Request a quote from Air Flo on Samoa Flow Division Systems and we will be in contact with you shortly.
Diaphragm Pump Markets
Applications
- Fluid transfer and dispensing
- Fluid evacuation
- Dosing / blending / formulation
- Fluid recirculation
- Supply for low pressure spray
- Fluid flushing / clean in place (CIP)
- Pumping samples
- Filter and filter press feeding
- Slurry handling
- Tank/barrel fulling and emptying
Fluids
- Acids
- Alkalis
- Alcohols
- Solvents
- Water based fluids
- Chemicals
- Fuels and oild
- Inks, paints and varnishes
- Additives
- Etc.
- Abrasive
- Chorrosive
- Hazardous
- Flammable
- Solids in suspension
- Shear sensitive
- Medium viscosity
